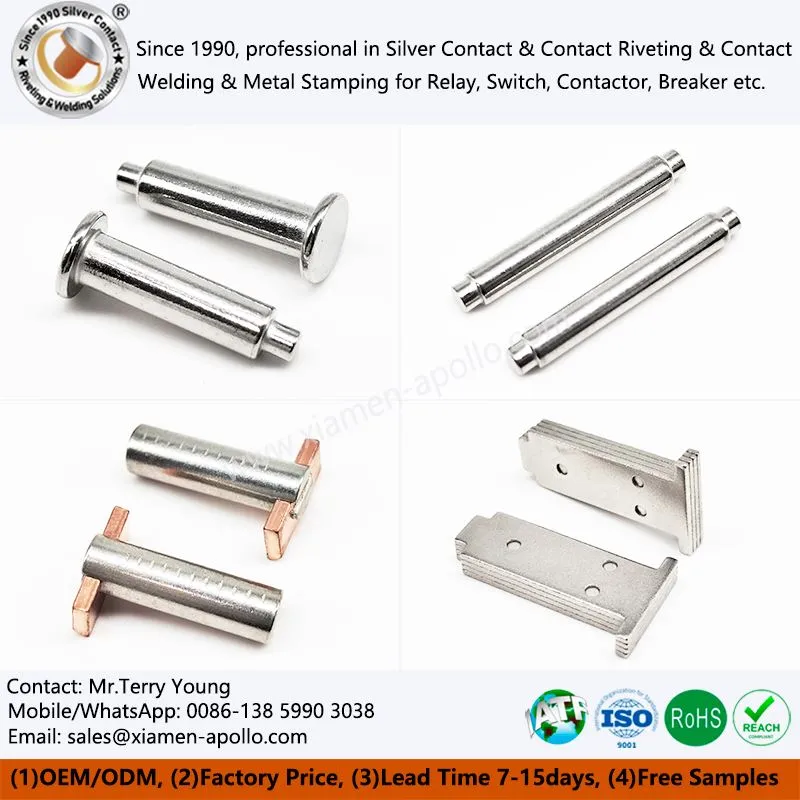

Cov khoom siv nyoos Cov txiaj ntsig: zoo hluav taws xob ntshiab hlau lav
Peb hais kom muab cov kev txhawb siab ntawm cov ntsiab lus:Kev Rov Mus Hluav Taws Xob Cov Tub Ntxhais Hluas, Latching Recay Hlau Core, Grooved Core rau AC Relay, Ev Repay CoreThiab cov ntaub ntawv nyoos (Td4C) tsim los ntawm Suav loj hauv lub xeev cov khoom lag luam, uas muaj cov yam ntxwv tseem ceeb:
| Qhov ntsuas tau ua tiav | TD4C tus qauv tus nqi | Cov ntaub ntawv nquag hauv kev lag luam |
| Cov ntsiab lus hlau | Ntau dua los yog sib npaug rau 99.8% | Tsawg dua los yog sib npaug rau 99.5% |
| Ntau lub zog quab yuam (HC) | Tsawg dua los yog sib npaug rau 32A / m | Ntau dua los yog sib npaug rau 50a / m |
| Sib Nqus Permeability (μm) | Ntau dua los yog sib npaug rau 5000 | Tsawg dua los yog sib npaug rau 3000 |
| Hardness (HV) | 80-100 | 120-150 |
| Grain loj qib | 8 theem | 6 qib |
Cov Khoom Siv Khoom Zoo:
(1). Ultra-siab Purity ntseeg tau zoo tshaj plaws mos muag khoom sib nqus
(2). Kev sib zog tsis tshua muaj zog ua tiav kom nrawm dua / Demagnetization teb
(3). Uniform grav qauv ua kom muaj kev sib nqus ua tau zoo sib nqus
(4). Lub Hardness Nruab Nrab yog conducive rau lub taub hau txias
Precision Taub Hau Txias Taub Hau Khaub Ncaws
1. Tungsten Steel Alloy Pwm Raug
Siv YG15 Tungsten Steel Khoom, Hardness Mus Txog HRA90
Lub neej pwm tuaj yeem ncav cuag ntau dua 1 lab lub sijhawm
Cov kab noj hniav raug yog tswj tau ntawm ± 0. 005mm
2. Ib tug pwm peb-punch txias cov txheej txheem
| Kev ua | Cov ntsiab lus | Precision Tswj |
| Thawj Punch | Kev luam | {0. 03mm |
| Thib Ob Ntaus | XOVXWM ZOO | {0. 02 hli |
| Thib Peb Punch | Kawg tsim thiab chamfering | {0. 01 hli |
Cov txheej txheem zoo:
Kev ua haujlwm ntau dua tau nce los ntawm 40%
Cov khoom siv siv tau txog 98%
Repay Core Coreking taub hau yeej zoo dua
3. Kev tswj cov ntsiab lus tseem ceeb
(1). Dimension tswj
Cov Tshuaj Txhua Hnub Siv Siv Peb-Coordinate Tshuab Ntsuas
Qhov ntsuas qhov ntev cpk ntau dua los yog sib npaug rau 1.67
(2). Cov Tswj Xyuas Cov Qauv Zoo
Nto roughness ra tsawg dua los yog sib npaug rau 0. 8μm
Tsis muaj qhov pom tawg lossis burrs
(3). Kev Tswj Xyuas Nyhav
Ib daim phaus kev tsim nyog ± 0. 5%
Tsis siv neeg uas cuam tshuam thiab cais cov kab ke
Kev ua haujlwm tom qab ua thiab tswj tau zoo
1. Kev kho cua sov demagnetization txheej txheem
Siv hydrogen tiv thaiv kev txuas ntxiv ua hluav taws xob
Tswj kub: 850 ± 5 degree
Yuam kev quab yuam tom qab annealing tsawg dua los yog sib npaug rau 25a / m
Magnetic permeability nce ntxiv los ntawm ntau tshaj 30%
2. Npib Plating Deg Kho
| Chaw ua uas tsis tau haus | Tus Qauv Txheem | Txoj kev kuaj pom |
| Txheej Thickness | 5-8μm | X-ray thuv gauge |
| Coating Bonding | Tsis muaj qhov muag | Thermal Shock Test |
| Kev Ntsuas Cov Ntsev | Ntau dua los yog sib npaug rau 72h tsis muaj xeb | Kev ntsuas cov tshuaj Ntsev nruab nrab |
| Nto tsis kam | Tsawg dua los yog sib npaug rau 0. 5mω | Plaub-Sojntsuam |
3. 100% CCD Tas nrho Kev Tshuaj Xyuas
- Yam khoom tshuaj xyuas: Qhov loj me, tsos, txheej
- Kev tshuaj xyuas qhov tseeb: 0. 01 hli
- Tsis siv neeg tsis lees txais tus nqi tsis xws li tsis xws luag Npog Chev COes: 100%
- Kev Soj ntsuam ceev: 300pcs / min
Kev ntseeg zoo
1. Txheej Txheem Tswjhwm Zoo
IQC Cov Khoom Siv Khoom Siv Khoom Siv: Sib Nqus Cov Khoom Sib Nqus ntawm txhua pawg ntawm Raw Khoom
IPQC Txheej Txheem Tshuaj Ntsuam Xyuas: Teev cov xuab moos loj
OQC Lub Hoobkas Kev Soj Ntsuam: Kev Xeem Ua Haujlwm Tag Nrho
2. Cov npe ntawm cov khoom siv kuaj
1. Sib Nqus Cov Khoom Vaj Tsev
2. Peb-Coordinate ntsuas lub tshuab
3. Metallographic tsom
4. X-ray Txheej Thickness Tag Huv Tibsi
5. Tsis Siv Neeg CCD Nrhiav Kom Tau Tshuab
3. Daim ntawv pov thawj kev lag luam
ISO9001: 2015 Kev Tswj Xyuas Cov Tsev Haujlwm Zoo
Eiaf16949 Kev Lag Luam Automotive Automotive
Nrog 20 xyoo kev paub hauv kev tsom mus rau Rooty Hlau Core Raug xaiv los kho cov khoom siv txias Peb cov tseem ceeb DT4c cores tau yeej lub sij hawm kev ntseeg siab ntev ntawm cov khoom siv thoob ntiaj teb, kho kom zoo nkauj, thiab kev ua tau zoo nyob ruaj khov.
Tuam Txhab Profile thiab Cov Thawj Coj Zoo
Raws li Tuam Tshoj tus ua tus xa cov chaw tsim tshuaj paus tseem ceeb, peb muaj ntau tshaj 20 xyoo ntawm kev nplua nuj nyob rau hauv kev tsim khaub ncaws txias. Peb cov kauj ncov ntawm cov hluav taws xob qeeb yog siv dav dav, muab lub zog hluav taws xob rov qab, muaj hluav taws xob siab thiab cov qauv siab sib sib sib nqus.
1. Tswjhwm Zoo rau tag nrho cov kev lag luam saw
Ua raws li kev tswj kom zoo los ntawm cov khoom siv raw ua tiav rau cov khoom tiav ntim
Tus kheej lub Pwm Rhiav kev ywj pheej, tshwj xeeb tshaj plaws hauv kev tsim cov tungsten steel alloy txias-hau pwm
Qhia cov khoom siv precision txias txias los ntawm Taiwan kom ntseeg tau qhov tseeb ntawm {{}}. 01 hli
2. Kev ua haujlwm ntau lawm
Txais yuav cov "Ib Pwm Muaj Peb Punches" Cov Txheej Txheem Ntxhov Siab
Thawj cov cua sov kho mob demagnetization txheej txheem
Tsis Siv Neeg Siab Nickel Plating Cov Kab Ntau Lawm Kom Ua Kom Toog Txheej Txheem
3. Kev ntsuas nruj nruj
100% CCD tag nrho kev tshuaj xyuas kom ntseeg tau tias xoom tsis xws luag ua ntej tawm hauv lub hoobkas
Cov Khoom Siv Kev Ntsuas Sib Nqus Sib Nqus kom ntseeg tau tias cov kev ntsuas hluav taws xob hluav taws xob tau ua tiav cov qauv
DhauIaf16949automotive kev lag luam kev lag luam kev tswj hwm kev tswj hwm system
