Cov khoom lag luam
Peb lub tuam txhab tsom rau kev tshawb fawb, kev loj hlob, thiab kev tsim cov khoom sib chwv hluav taws xob, npog plaub series:Cov Zeev Sib Nrauj, Cov Nyiaj Pab Tau Rau Cov Nyiaj, Cov Nyiaj Bimetal Cov Nyiaj, thiab cov kev sib tw trimetalCov. Cov busbars uas tau raws li qhov xav tau ntawm ntau daim teb, xws li lub zog, lub zog tshiab, thiab khoom siv khoom siv.
Cov khoom lag luam faib tawm thiab cov yam ntxwv
1. Cov Khoom Muag Khoom
1.1 Cov Khoom Txhais thiab Cov Qauv Tseem Ceeb
Daim Ntawv Daim Ntawv: Cov Qauv Purity Electrolytic (Cu ntau dua lossis sib npaug rau 99.99%) yog siv los ua cov khoom siv hauv paus, thiab nws yog tsim nyob rau hauv ib kauj ruam los ntawm ib tug txheej txheem txias, nrog rau hluav taws xob txias thiab thermal ruaj khov thiab tshuab ruaj khov.
Cov qauv tsis zoo:
| Nominal diam | φ 0. 8 hli ~ φ25mm (cov kev qhia tsis yog tuaj yeem raug kho tau) |
| Hu rau Ntev Ntau Yam | 2 hli ~ 15 {0 mm (thev taus} {4}}. 02mm, muab faib raws li qhov tseeb qib) |
| Lub Taub Hau Hom | tiaj, nkhaus |
| Nto Kho | Nickel plating (ni ntau dua lossis sib npaug rau 3μm), nyiaj ntau dua lossis sib npaug ntawm 1μm) lossis kev kho siab tshaj lossis sib npaug ntawm 1μm) |
1.2 Cov Txheej Txheem Zoo
(1). Cov yam ntxwv ntawm substrate:
Cathode electrolytic tooj liab (oxygen cov ntsiab lus<20ppm) is selected, with a conductivity of 58MS/m (IACS ≥99.99%), which is significantly better than brass/bronze (conductivity is only 60%-80% IACS).
Ntse 8.9G /M³, melting point 1083 degree, siv tau zoo heev-kub oxidation tsis kam (tsis muaj kev hloov zoo hauv kev pabcuam ntev ntawm 150 degree).
(2). Txheej txheem tsim khoom:
A multi-station cold heading machine is used for forming (≤φ25mm specification), one-time forming rate >98%, saum npoo av ra tsawg dua los yog sib npaug rau 1.6μm, zam kev puas tsuaj siv los ntawm cov taub txias.
1.3 Kev Ua Haujlwm Zoo
(1). Kev Ua Hluav Taws Xob:
Tsis tshua muaj kev sib chees: Cov ntaub ntawv raw ntawm cov ntxhia los ntawm ntxhia smilting, tsis yog ob txhais tes rov ua dua, kom ntseeg tau tias muaj txiaj ntsig zoo.
Anti-electrochemical corrosion: ua ntej ntim khoom, txhua nyiaj
(2). Cov Khoom Siv Neeg Kho Tshuab:
Lub taub hau Bonding zog: Lub sijhawm ua haujlwm txias ua kom tau siv los txhim kho cov kev sib koom ua ke ntawm lub tooj liab tom qab deforming txias; Lub siab-kub diffusion kev kho nyob rau hauv tom qab theem ntxiv ntxiv dag zog rau lub zog ntawm lub tooj liab molecules, zoo heev txhawb cov tshuab ua tshuab.

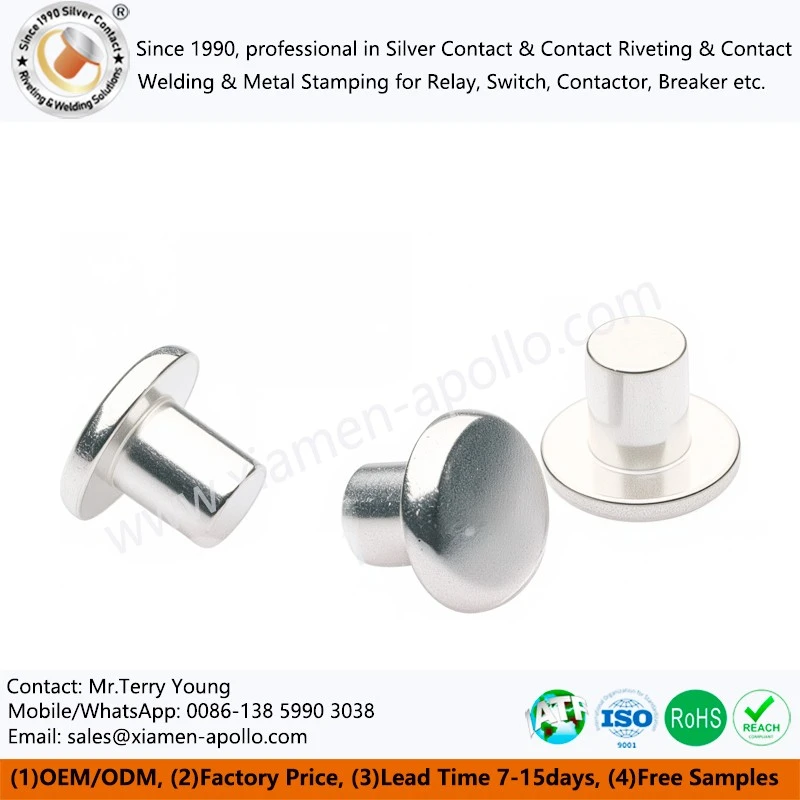

2. Cov Nyiaj Sib Ntsib
2.1 cov khoom txhais thiab cov qauv yooj yim
Khoom Siv Khoom: Cov Nyiaj Pwm Loj Electrolytic Nyiaj (Ag loj dua los yog sib npaug rau 99.99%) yog siv los ua cov khoom siv hauv paus. Alloy ntsiab (xws li Ni, CDO, Sno₂, CU, thiab lwm yam) tuaj yeem tsim cov khoom sib chwv, thiab tiv thaiv vuam ua haujlwm hauv qhov hluav taws xob sib txawv.
| Nominal diam | φ 0. 8 hli ~ φ25mm (cov kev qhia tsis yog tuaj yeem raug kho tau) |
| Ntsia thawv ntev | 2 hli ~ 15 {0 mm (thev taus} {4}}. 02mm, muab faib raws li qhov tseeb qib) |
| Lub Taub Hau Hom | tiaj, nkhaus |
| Nto Kho | Nickel plating (Ni ntau dua lossis sib npaug zos rau 3μm), nyiaj ntau dua lossis sib npaug ntawm 1μm), lossis kev kho siab tshaj lossis sib npaug ntawm 1μm) |
2.2 Khoom Siv Tshuab Zoo
(1). Cov tub ntxhais kev ua haujlwm ntawm cov ntshiab nyiaj
Hluav taws xob conductivity thiab thermal conductivity: kev coj ua 6203
Ductility: Hardness HV 25 ~ 35 (Vongation ntau dua lossis muaj peev xwm ua tau zoo li 25 xyoos. 1 hli ultra-nyias. 1 hli ultra-nyias.
| Alloy Hom | Cov khoom tivthaiv | Kev Ua Haujlwm Zoo Dua | Raug Daim Ntawv Teev Npe |
| Nyiaj tsib xee (Agni10) | Ag -10} ni | Arc yaig Kuj (Arc lub neej nce los ntawm 30%), anti-yaj vuam vuam (melting force txo los 40%) | Cov hluav taws xob me me thiab nruab nrab kom rov qab, cov neeg tau txais |
| Silver Tin Oxide (Agsno12) | Ag -12}% sno₂ | Cadmium-dawb thiab ib puag ncig tus phooj ywg, tiv taus organic paug (kev sib cuag tiv thaiv<15%) | Automotive Electronics, Cov Khoom Siv Khoom ntse |
| Nyiaj tungsten (Agw70) | Ag -70}% w | High Melting taw tes (2800 degree), qis txiav cov nqi (tsawg dua los yog sib npaug rau 100ma) | Cov neeg hluav taws xob siab ntau cov neeg ua txhaum, siab tam sim no hloov |
| Nyiaj Tooj Liab (Agcu10) | Ag -10}% cu | Nqi ua kom ua tau zoo (cov khoom siv tus nqi txo los ntawm 20%), HV 70 ~ 85) | Cov neeg muaj chaw muaj kev lag luam zoo tib yam, kev yug menyuam |
2.3 ua haujlwm rau cov tsis muaj zog
(1) Cov cim tseem ceeb ntawm kev ua hluav taws xob
Kev Sib Nrauj Ua: Cov nyiaj dawb paug tsawg dua lossis sib luag rau 10μω (1a load, DC voltage poob<10mV); AgSnO₂ contact ≤15μΩ (including surface oxide film correction factor).
Arc Kuj: Thaum cov ntsuas hluav taws xob yog AC 25}} v, sib npaug ntawm 5ms) tsawg dua lossis sib npaug nrog 0.5j / T 5583 xeem).
Kev tiv thaiv kev hufug: nyob rau ib puag ncig nrog ib qho kev sib koom tes ntawm 10ppm, qhov kev sib chwv tiv thaiv nce yog<30% after 500h (passed the ASTM B809 sulfurization test).
(2) Cov neeg kho tshuab ua haujlwm
Lub taub hau Bonding zog: lub sijhawm ua haujlwm txias rau ib-zaug yog siv los txhim kho cov kev sib koom ua ke ntawm cov nyiaj sib cuag tau tom qab cov kev sib tw txias; Lub siab-diffusion kev kho mob nyob rau hauv tom qab theem ntxiv ntxiv dag zog rau lub zog ntawm lub zog ntawm cov nyiaj molecules, zoo heev txhim kho cov tshuab ua tshuab.
3. Bimetal Cov Nyiaj Sib Koom
3.1 Cov Khoom Txhais thiab Cov Tub Ntxhais Txheej Txheem
Nyiaj Alloy thiab Tooj Npav Forging Forging Composite Kev Sib cuag Hluav Taws Xob yog siv hauv hluav taws xob hloov, xa cov Circuit Court, thiab lwm yam khoom siv. Nws yog tsim los ntawm compounding nyiaj alloy (kev sib cuag txheej txheem) thiab tooj liab (hauv paus txheej) los ntawm cov txheej txheem forging txias.
Cov qauv ib txwm ua
[Hu rau txheej] Nyiaj alloy (AgcoT / Agndo / Agni, thiab lwm yam) {0}}. 3 hli ~ 2 hli
[Base txheej] Tooj liab / Tooj Alloy (Cu / Cuni, thiab lwm yam) Thickness}. 5mm ~ 5 hli ~ 5 hli
Cov tsis muaj tseeb:
| Hu rau lub taub | φ1mm ~ ak2 {0 mm (thev taus {{4 4}}. 01mm0.05mm) |
| Kev sib cuag | Tsawg dua los yog sib luag rau 100μω (ntsuas kub nce<20K under 10A load) |
| Kev nyuaj | Hu rau txheej HV ntau dua los yog sib npaug rau 120, Base Txheej HV ntau dua lossis sib npaug ntawm cov khoom siv) |
| Arc tiv taus lub sij hawm | Ntau tshaj 100, 000} lub sij hawm (16a / 250V AC sim cov xwm txheej) |
3.2 Cov Txheej Txheem thiab Kev Ua Tau Zoo
(1). Cov Khoom Sib Txuas Matrix
| Khoom Hom | Cov kev ua tau zoo | Yam uas pab | xwm txheej |
| Nyiaj Tin oxide alloy | Agsno₂ (8 ~ 12%) | Muaj zog tiv taus vuam (vuam quab yuam<50N), low contact resistance (≤80μΩ), cadmium-free and environmentally friendly, compliant with RoHS 3.0 | Tsawg-voltage Circuit Court Limhiam, Repays |
| Nyiaj Nickel Alloy | Agni (10 ~ 20%) | Arc yaig kuj (arc lub zog loj dua los yog sib npaug rau 50J), hnav tsis kam (hnav tus nqi<0.1mg/10,000 times), suitable for high-frequency operation scenarios | Hu rau, Solenoid Valve |
| Lub AgcCo | 8%, 10%, 12%, 13%, 15%, thiab lwm yam. | Siab tshaj plaws, ze rau cov nyiaj ntshiab; muaj zog tiv taus arc ablation; tiv thaiv kev tiv tauj adhesion; Zoo hnav tsis kam thiab cuam tshuam tsis kam | Haum rau high-tam sim no hloov |
4. Trimetal Nyiaj Pab Dawb
4.1 Dab tsi yog trimetal-composite nyiaj sib cuag
Lub Triple-Composite Nyiaj Sib cuag yog qhov hluav taws xob sib sau yog cov khoom hluav taws xob sib txawv, feem ntau yog nyiaj (ag) + nyiaj (ag). Cov qauv qauv muaj xws li cov nyiaj-tooj-tooj-nyiaj (ag-cu-ag
4.2 Cov txheej txheem txias
(1). Taw qhia rau cov txheej txheem txias
Txias hau taub yog kev ua haujlwm siv tshuab uas ncaj qha rau cov hlau tuav hauv cov duab geometric ntawm chav nyob ntawm kev tuag thiab stamping siab. Cov yam ntxwv ntawm cov txheej txheem txias los ntawm peb-composite nyiaj sib cuag yog raws li hauv qab no:
| Siab Precision | Cov pwm-sib sau ua ntej yog siab, uas tuaj yeem ua kom cov khaub ncaws sib dhos ntawm cov txheej sib xyaw. |
| Siab efficiency | Haum rau huab hwm coj ntau lawm, muaj zis siab ib zaug ntawm lub sijhawm. |
| Zog txuag thiab tau txo | Tsis tas yuav tsum muaj cua sov yuav tsum tau rau chav ua haujlwm kub, txuag lub zog. |
| Zoo metallurgical sib raug zoo | Qhov ntau-txheej hlau tswj hwm lub xeev zoo thaum lub sij hawm tus txheej txheem txias ua kom ntseeg tau lub neej kev pabcuam. |
(2) Cov lus piav qhia luv luv ntawm cov txheej txheem sib tsoo no:
Cov Khoom Siv Raw Kev Npaj (Composite Nyiaj Sawb) → Txog Kev Kho Mob → Txog Kev Kho Mob Kub (xws li Kev Kho Mob Thaum Tshav Kub Kub
4.3 tus nqi thiab kev ua tau zoo
(1). Tus nqi kom zoo dua
Txo Nqi Them Nyiaj: Cov txheej txheem nruab nrab siv cov tooj liab uas tsis muaj npe qis lossis cov nyiaj npib tsawg, uas tau txo qis dua 30% rau 50% piv nrog txhua-nyiaj sib cuag.
Cov khoom siv peev txheej siab: cov khoom poob thaum lub sijhawm txias txias yog qhov tsawg heev, uas txhim kho kev lag luam.
(2). Qhov Zoo
Kev ua tau zoo:Ob tog muaj cov nyiaj ntshiab kom ntseeg tau tias tsis muaj kev sib cuag tsis tshua muaj kev sib cuag thiab ruaj khov.
Muaj zog arc ablliation tiv:Qhov nruab nrab txheej hlau tuaj yeem ua tsis tau lub arc thermal kev ntxhov siab thiab txuas ntxiv lub neej ntawm kev tiv tauj.
Xav muaj zog txhua yam:Tom qab cov taub hau txias, nws muaj qhov ntom ntom ntom, lub zog zoo, thiab tsis yooj yim rau deform.
Muaj zog vuam hloov tau:Haum rau brazing los yog tawm tsam vuam nrog ntau yam ntawm substrates.
4.4 Daim ntawv thov hauv kev lag luam tswj kev sib cav
(1). Thov Nyiaj Tom Qab
Muaj kev tswj cov nqaj yuav tsum tau nquag mus rau ib qho kev hloov mus thiab tawm tam sim no thiab muaj cov kev xav tau zoo heev, kev tawm tsam, thiab kev tiv thaiv vuam. Tri-Composite Silver Cov Nyiaj Pab yog qhov kev xaiv zoo tshaj plaws.
(2). Daim Ntawv Thov Zoo
Txhim kho kev ntseeg tau: Tri-composite nyiaj guptions kom cov haujlwm ntev ntev ntawm kev xa tawm thiab txo qhov tshwm sim ntawm kev ua haujlwm tsis tseeb.
Cov kev pabcuam txuas ntxiv lub neej: piv nrog cov chaw zoo ib txwm muaj, lub neej hluav taws xob ntawm Tri-Composite cov neeg sib xyaw tau nce ntau dua 30%.
Haum rau cov chaw siab dav dav: tsim rau kev tswj hwm cov khoom lag luam siab thauj khoom xws li lub cev muaj zog thiab inverters.
(3). Cov Khoom Muag Khoom Sib Txawv
Nruab nrab qeeb (xws li JTX series)
Lub sij hawm rov qab
Tus Huoo Pab Saib Xyuas
Cov teeb liab rov qab hauv kev tswj tsis siv neeg
Trimetal cov nyiaj sib cuag tau maj mam hloov cov khoom sib tiv tauj nrog lawv cov khoom siv hluav taws xob, thiab kev lag luam, tshwj xeeb hauv kev tswj hwm kev nyab xeeb, ua haujlwm ib lub luag haujlwm tseem ceeb. Ua ke nrog cov pawg tsim cov txiaj ntsig zoo ntawm cov txheej txheem txias taub hau, nws muab cov kev daws teeb meem zoo rau cov khoom siv hluav taws xob.
Vim li cas thiaj xaiv peb? {{0 {0}} plaub lub ntsiab lus plaub kom tsim cov nqi sib koom tes
1. 30 Xyoo ntawm Kev Lag Luam Kev Lag Luam, Kev daws teeb meem yog qhov mob ntawm cov khoom sib txuas hluav taws xob
Cov txuj ci muaj zog cov txuj ci: Pab pawg tseem ceeb los ntawm Xiamen Hongfa Pab Pawg, tus thawj coj hauv ntiaj teb nyob rau hauv Relays. Nws tau mob siab rau kev lag luam hluav taws xob rau ntau tshaj 30 xyoo thiab tsis muaj txiaj ntsig ntawm cov khoom siv hluav taws xob, lub zog tshiab, thiab lwm daim teb. Nws tuaj yeem muab cov nqi-txuag thiab txuag txoj kev daws teeb meem thiab txiav cov kev sib tw thev naus laus zis (thiab siab thermal conductivity vuam cov txheej txheem).
Tag nrho cov kev pab them nqi: Feem ntau koom nrog cov khoom siv hluav taws xob, xa mus rau cov khoom siv hluav taws xob uas siv hluav taws xob, kom tau raws li kev siv hluav taws xob ib zaug.
2. Cov kev pabcuam thoob ntiaj teb, kev lag luam-coj teb kev nrawm
7 Cov ceg ntoo txawv teb chaws: Cov lus hais txog Tebchaws Europe thiab Barcelona (Thohy)
Kev xa tawm nrawm: Cov qauv pub dawb yog xa tawm hauv {{}}}}}}}}}}
3. Kev lag luam puv kev lag luam, zoo heev thiab nqi
Ntau txheej txheem sib xyaw ua ke: mastering {10+ cov txheej txheem sib tw los ntawm cov khoom siv txias los ntawm cov khoom lag luam nyoos, kev tswj hwm tus nqi<0.01% and the comprehensive cost is 10%-15% lower than that of peers.
Pab pawg teev txhawb: Lub zog tshiab
- Haiceang Hoobkas: Tshiab Zog Stamping Chaw / Vuam Qhov Chaw;
- Beilun Hoobkas: Cov Khoom Sib Tiv Haum Nyiaj;
- Yinzhou Hoobkas: Relay Core Couny Stamping, kom muaj peev xwm ruaj khov ntau thiab ntau yam thev naus laus zis.
4. Nruj me ntsis kev tswj hwm, ntawv pov thawj ua haujlwm
Tag nrho cov txheej txheem ua raws cai: Dhau ISO 9001: 2015, ITFOLYtic Cov Qauv Kev Ntsuam Xyuas, los ntawm cov txheej txheem khoom siv hluav taws xob, kom paub meej cov khoom lag luam sib xws ua tau raws li cov qauv thoob ntiaj teb.
5. Hard-core Team thiab cov cuab yeej nteg lub hauv paus rau kev tsim khoom
Peb muaj xya kev cob qhia: stamping, vuam, pwm, cnc, txias hau, electroplating, thiab automates sib dhos kev cob qhia. Peb tus tswv lub thev naus laus zis thiab tsis txhob outsource nws. Cov neeg ua haujlwm tseem ceeb ntawm cov neeg ua haujlwm rau 30% los xyuas kom cov kev siv thev naus laus zis thiab kev tswj hwm ruaj khov;
Cov cuab yeej cuab tam tau zoo tshaj plaws: nruab nrog ntau dua 100 precision ua cov khoom siv txias), nrog kev xav tau ntawm ntau lub zog txias (thiab Laser Vuam
