Khoom Description
Dab tsi yog Tungsten Copper Rivet Hluav Taws Xob Sib Txuas?

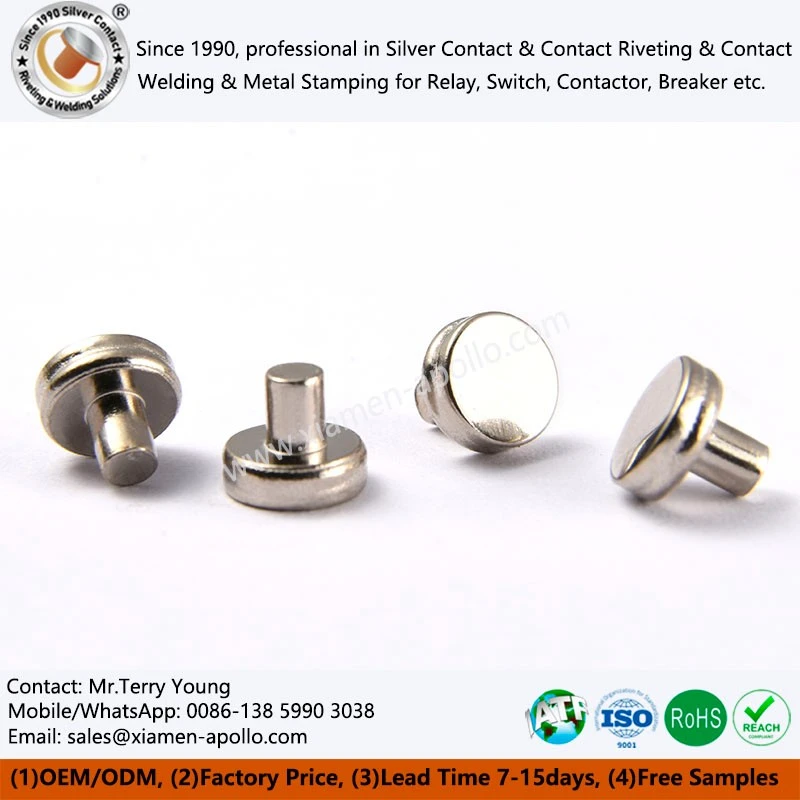

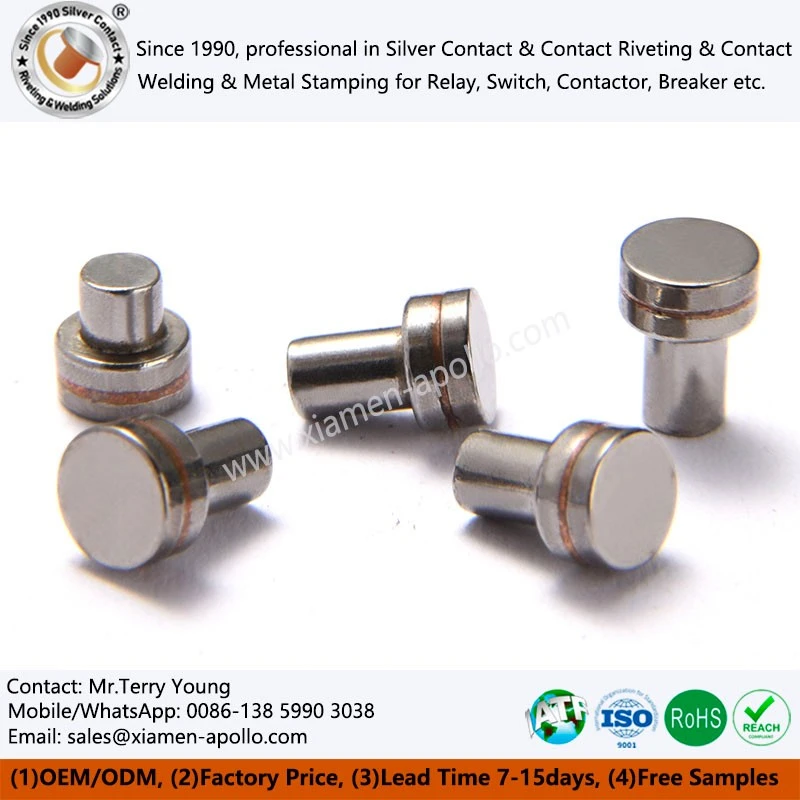

Nws yog ib qho kev sib txuas rivet-style hluav taws xob tiv tauj uas muaj lub siab- melting- taw tes tungsten tiv tauj lub taub hau ruaj ntseg txuas rau lub hauv paus shank (ua los ntawm hlau lossis tooj liab ntshiab) los ntawm siab - kub brazing; qhov saum npoo yog npib tsib xee-plated los txhim kho oxidation kuj. Cov qauv no sib txuas cov arc tsis kam ntawm tungsten nrog cov khoom siv hluav taws xob thiab cov yam ntxwv sib dhos ntawm cov khoom siv hauv paus.
Feem ntau, qhov kev sib cuag nta ib puag ncig lossis tiaj tus tungsten lub taub hau thiab ib nrab -hollow lossis khoom rivet shank; tag nrho qhov siab thiab txoj kab uas hla tuaj yeem hloov kho raws li cov lus qhia tshwj xeeb (cov kab uas hla ntawm 2 txog 8 hli, nrog lub taub hau tuab ntawm 0.5 txog 2 hli).
Cov haujlwm tseem ceeb
Siab -Kev Hloov Tam Sim No: Hauv cov khoom siv xws li tsheb horns thiab relays, Ib nrab Hollow Tungsten Hu rau Rivets tau qhib thiab kaw haujlwm ntau zaus. Cov txheej txheem ua haujlwm tungsten tuav qis- tiv thaiv kev sib cuag txawm tias rov ua dua arc cuam tshuam, ua kom ntseeg tau qhov kev coj ua zoo.
Arc Energy Dissipation thiab Resistance: Thaum ib qho arc tsim nyob rau lub sijhawm ntawm Tungsten Contact Point Rivet sib cais, cov khoom siv tungsten -ua tsaug rau nws qhov siab melting point thiab qis evaporation tus nqi -dissipates arc zog, yog li txo cov khoom xa mus thiab ablation.
Kev Sib Txuas Hluav Taws Xob thiab Hluav Taws Xob: Lub rivet shank ruaj cov khoom siv rau lub davhlau ya nyob twg lossis lub caij nplooj ntoos hlav tiv tauj, muab kev txhawb zog ruaj khov thiab kev siv hluav taws xob. Qhov zoo tshaj plaws ductility ntawm lub hauv paus tooj liab ua kom cov flange du tsim thaum lub sij hawm riveting txheej txheem.
Weld Resistance thiab Fast Disconnection: Nyob rau hauv luv luv- Circuit Court lossis overload, weld-resistant xwm ntawm Tungsten Copper Electrical Contacts ua kom muaj kev sib cais sai, tiv thaiv kev luv luv.
Manufacturing Advantages
Nruam Siab -Speed Nqus Brazing
Peb siv cov ntxaij vab tshaus siab heev- siv lub tshuab nqus tsev vacuum / tiv thaiv qhov cua txias rauv taws. Lub thickness ntawm cov tooj liab - silver brazing txheej nruab nrab ntawm tungsten disc thiab cov pa oxygen -dawb tooj liab substrate yog nruj me ntsis tswj ntawm 15 µm thiab 30 µm, ua tiav ib tug interface wetting tus nqi ntawm ntau tshaj 98% thiab tshem tawm cov microscopic voids los yog phau ntawv unbonded chaw sib cuag los ntawm copper feem ntau tshwm sim.
Vertically Integrated Supply Chain Rau Siab -Purity Raw Materials
Tag nrho cov khoom siv raw tau dhau los ua qhov thib ob refining. High- ntom, pore- dawb tungsten blanks yog tsim los ntawm cov hmoov metallurgy, thaum siab - conductivity electrolytic tooj liab yog siv rau lub substrate; Qhov no tiv thaiv impurities los ntawm kev cuam tshuam tsis zoo rau brazing nto nro thiab hluav taws xob conductivity rau Half Hollow Tungsten Contact Rivets.
Digital Automated Inspection Thiab Sorting
Cov kab sib dhos ua ke sib koom ua ke siab - nrawm 3D tshuab pom kev tshuaj xyuas (3D AOI) thiab eddy- tam sim no impedance sorting systems. Txhua tungsten Contact Point Rivet ua tsis tau{5}}kev ua piv txwv rau qhov loj me, coaxiality, thiab kev sib txuas ntawm txheej shear zog, kom ntseeg tau tias qhov kev hloov pauv zoo nyob hauv ± 0.02 hli thaum lub sij hawm siab - ntim, nruam ntau lawm.
Cov lus nug nquag
Q: Tungsten Copper Hluav Taws Xob Cov Hluav Taws Xob muaj kev tiv thaiv siab dua li cov nyiaj alloy; Qhov no puas yuav cuam tshuam rau kev ua haujlwm horn?
A: Nyob rau hauv lub automotive horn tiv thaiv Circuit Court, coil kuj thiab kab impedance nyob deb ntau dua kev tiv thaiv (milliohms vs. ohms); ib qho kev tiv thaiv ntxiv ntawm 2-5 mΩ tsis muaj kev cuam tshuam loj heev rau tam sim no amplitude. Cov yam tseem ceeb yog kev tiv thaiv kev sib cuag vuam thiab kev pab lub neej.
Q:Kuv yuav xaiv li cas ntawm tooj liab terminals thiab hlau terminals?
A: Yog tias Copper Tungsten Hluav Taws Xob Cov Hluav Taws Xob tau ruaj ntseg rau lub reed nkaus xwb los ntawm kev siv tshuab riveting thiab yuav tsum tsis muaj kev sib txuas → xaiv cov hlau terminals (tus nqi qis dua). Yog hais tias lub davhlau ya nyob twg yuav tsum tau kho rau ib tug PCB los yog tooj liab tiv tauj choj ntawm qhov chaw vuam los yog yoj soldering → xaiv tooj liab terminals (zoo solderability thiab me ntsis superior hluav taws xob conductivity).
Q: Puas yuav lub brazed interface tsis nyob rau hauv qhov siab -kub ib puag ncig ntawm lub cav compartment?
A: Lub hardus kub ntawm AgCu brazing muab tub lim hlau yog kwv yees li 779 degree, whereas qhov siab tshaj plaws cav compartment kub yog 125℃-deb hauv qab qhov pib. Tsis tas li ntawd, qhov sib txawv ntawm thermal expansion yog haum los ntawm elastic strain ntawm fillet braze sib koom; validation los ntawm 500 thermal cycles (-40℃rau +125 degree) paub meej tias tsis muaj delamination rau Ib nrab Hollow Tungsten Hu rau Rivets.
tiv tauj peb
Yog hais tias koj yog ib tug engineering procurement los yog technical professional nrhiav txhim khu kev qha, arc -resistantTungsten Copper Rivet Hluav taws xob tiv taujkev daws teeb meem rau tsheb horns, ntse hauv tsev relays, lossis lwm yam kev tswj hluav taws xob, thov koj xav tiv tauj peb. Peb pab neeg muaj cov kws tshaj lij xaiv cov lus qhia, kev txhawb nqa kev sim, thiab cov khoom ntim ruaj khov raws li koj qhov kev thauj khoom, cov txheej txheem sib dhos, thiab cov kev cai ib puag ncig, pab tsav koj qhov project mus tom ntej zoo. Peb tos ntsoov yuav koom tes nrog koj.
